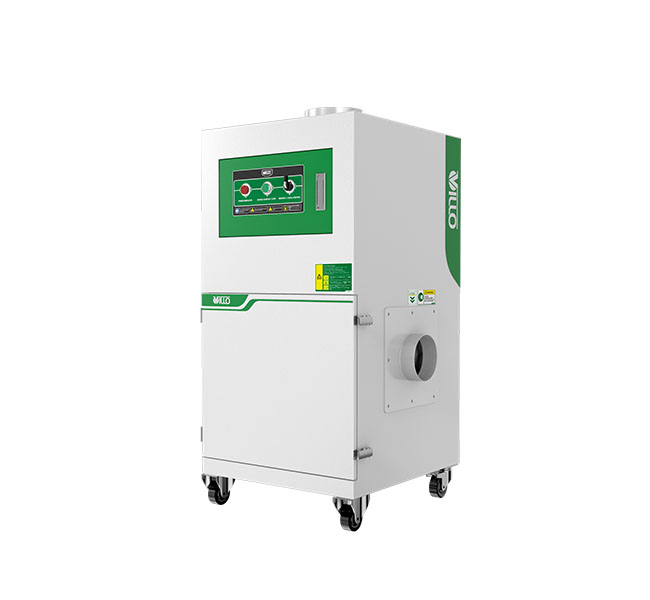

VJ-H Series Manual Cleaning Type Industrial Dust Collector
VJ-H Series is a simple industrial dust vacuum collector with large air volume, stable and reliable mechanical structure, small footprint, and flexible movement.
Parameters of VJ-H Series Manual Cleaning Type Industrial Dust Collection System
|
Model |
VJ-1.5H |
VJ-2.2H |
VJ-3.0H |
|
Voltage (V/Hz) |
380 / 50 |
||
|
Power(kW)/ ( HP ) |
1.5 / 2.0 |
2.2 / 3.0 |
3.0 / 4.0 |
|
Starting current （A） |
25 |
40 |
50 |
|
Rated current（A） |
3.4 |
4.8 |
6.4 |
|
Max air flow |
1500 / 883 |
2200 / 1295 |
3000 / 1765 |
|
Dia. air inlet |
Ø 150 /6 |
Ø 200 / 8 |
|
|
Noise dB (A) |
73±2 |
75±2 |
77±2 |
|
Filter area |
8 / 86 |
||
|
Filter efficiency |
>99% |
||
|
Filter cleaning method |
Rotary vane dust vibration structure |
||
|
Capacity of the dust |
15 / 4.0 |
||
|
Dimension [L*W*H] |
653*700*1300 |
653*700*1300 |
653*700*1362 |
|
Weight (kg) / (lb) |
130 / 287 |
140 / 309 |
190 / 419 |
|
It is normal that the current value may fluctuate in a small range |
|||
Features of VJ-H Series Manual Cleaning Type Industrial Dust Collector
Horizontal filter installation mechanism can reduce the height of machine, and can be very suitable for space limited working conditions. The material of filter cartridge can be water-oil resistant, polyester or other type depending upon the customer needs.
Patented manual filter cleaning is used (Patent No. 201220489001.3), at the back side of the machine, there is a rotary handle to clean the accumulated dust on the filter. It is convenient and cost saving.
To keep the machine running safely and conveniently, the machine is equipped with a simple type magnetic switch, which has the thermal overload protection function. Also, it can achieve remote control function according to customer's requirement.
If you want to know more about industrial dust collector price, please contact us.
Contact : com VILLO, 0769 82269302
