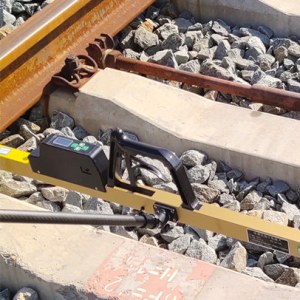

Railway Digital Rolling Track Gauge

Quantity : 1 Price : 6 000,00 €

Portable Rolling Track Gauge is mainly used for railway track gauge and super-elevation(cant), check rail gauge and back to back distance measurement.It can be used for track inspection and fine adjustment of rail gauge.This product has the advantages of fast measuring speed, stable pushing rod, easy to carry,and night-time and tunnel work,legible even in direct sunlight are supported.It is an ideal measuring tool for track fine-tuning, track construction,inspection and track laying.

Features

The benefits of our rolling gauge : 1. Measure the track gauge, cant without bend over your back. 2. Light weight : around 6.5kg , one person operation. 3. BT connection, data uploading and analysis system. 4. High working efficiency. Save your man power. ( 1 man with 1 rolling gauge = 4 man with 4 normal digital track gauge)

Specification

Model (1435mm)	GJC-JJG0
Track gauge	1410-1470mm
Superelevation measuring range	-185~+185mm
Display mode	OLED display and hand-held terminal display
Supply Voltage	DC3.4V～5.2V (rechargeable battery)
Superelevation division value	0.05mm
Working temperature	-30℃～+55℃
Insulation performance	＞1MΩ
Track gauge division value	0.01mm
Superelevation division value	0.05mm
Track gauge max indication error	≤±0.25mm
Superelevation max indication error	≤±0.3mm
Length	＜1700mm
Net Weight	≤6.5kg
