Micro flow meter

alt

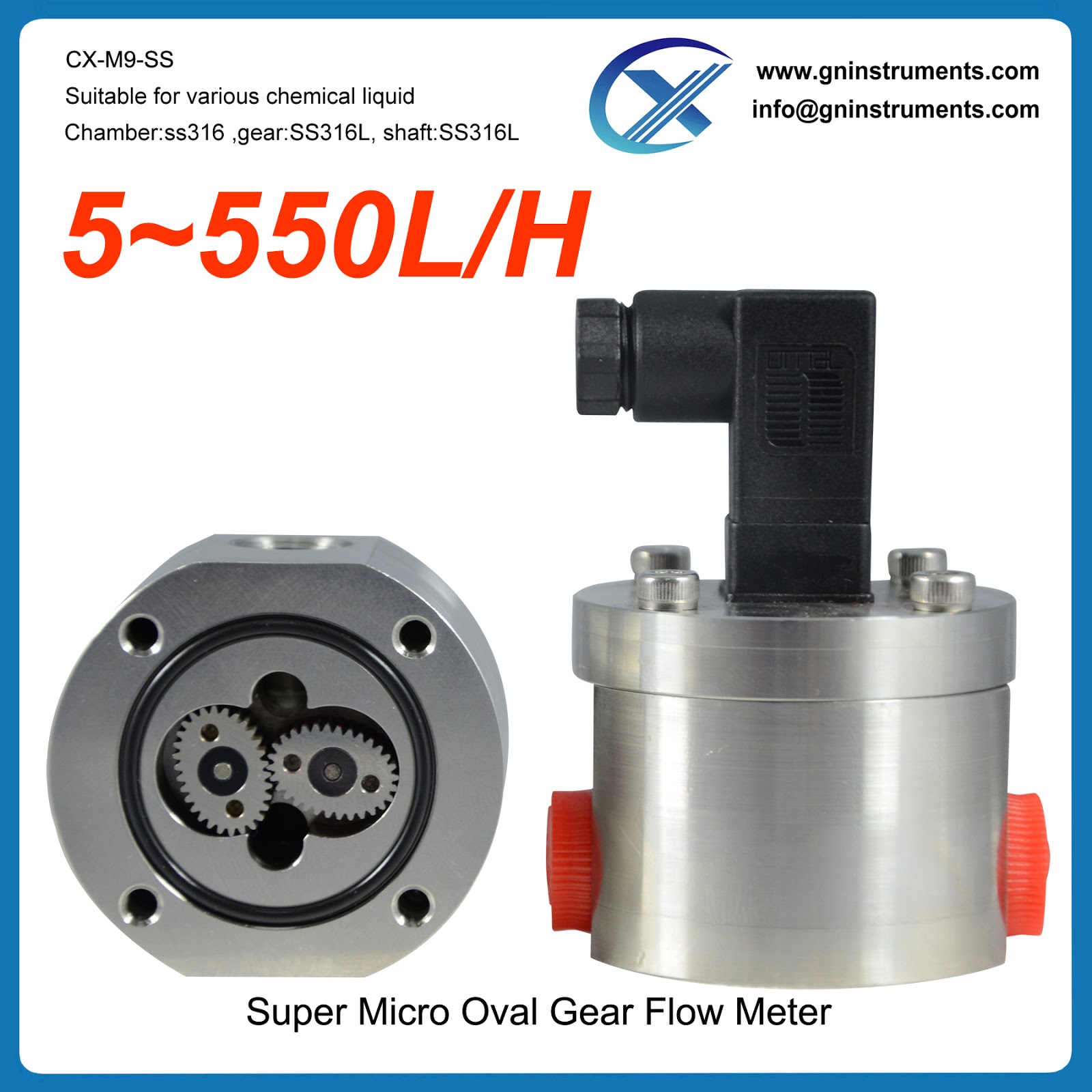

Low Micro Flow Meter

Using condition:
precision dosing,hydraulic system ,system monitoring,open/closed loop control
process control,automobile industry,plastic technology,hydraulic system,laundry chemical,additive injection,water treatment,corrosive chemical dispensing,chemical batching,chemical packaging and blending,flow rate ,easurement,oil metering,consumption measurement,ratio control,batching control
hydraulic test stand,metering plant,print process,2 component plant,lacquering plant,closed-loop management
alt
Small Capacity Flow Meter
Medium:
glue,gum,water,fluid,liquid,paints,dyes,chemicals,pharmaceuticals,two- component mixers,petrochemicals,oil,grease,ink,waterbased liquid,adhesive,adbrasive ,dhesive,sealant,hydraulic oil,brake fluid,skydrol,diesel,lubracating,low ,iscosity,gear oil,medium viscosity,methyl ,Methanol,methylbenzene,Toluene
offset ink,high viscosity,polyol,isocyanate,resin,low lubricity,lacquer,clear lacquer,wax,cavity wax,solvent,caustic soda,sodium hydroxide,glycerin,glycol
propylene,triethylene,diethylene,ethylene ,bhylene,molasses,cocoanut oil,corn oil
cotton oil,lard oil,olive oil,palm oil,peanut oil,rape seed oil,rosin oil,soy bean oil,syrup,sugar,electrohydrodynamic
alt

Flow range and connection

Model Flow range Connection
CX-M2 0.5~150 ml/min G1/8 female thread
CX-M3 1-300 ml/min G1/8 female thread
CX-M5 5-1000 ml/min G1/8 female thread
CX-M6 0.5-100 l/H G1/4 female thread
CX-M9 5-550 l/H G1/4 female thread
CX-M12 1~30 L/min G1/2 female thread
CX-M25 5-110 l/min G1 female thread
CX-M40 10-250L/min G1 1/2 female thread
CX-M50 10-500L/min G2 female thread
accuracy 0.5%
Temperature -30~80°C(customized)
Pressure 32bar(customized)
output square-wave pulse
Supply 4-26VDC
material
chamber: SS316L or anodized aluminum
Pls check below parameters to ensure right model for micro flow meter
Using condtion:
Medium Corrosive or Non
Viscosity Flow range
Working temperature Working pressure
Used brand Qty:
If for flow monitor:
Do you need to display total flow or current ? or both ?
If for dosing:
How many litres per batch ? and how long it takes ?


Shanghai Cixi Instrument Co. Ltd

Location : Rm613, Jiahe Sunny Plaza, No.76 JiuTing Road, Songjiang District, Shanghai, P.R. China.Zip:201615, 201615 shanghai,
Contact : Michael Luo, +15 0 00 08 75 45
