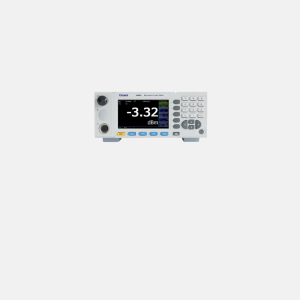

2438 Microwave Power Meter

2438 series microwave power meter consists of a main unit of microwave power meter and a series of microwave power sensors. In the design, broadband diode detector, digital signal processing technology and multidimensional calibration compensation technology are adopted to make the instrument have wide frequency band, wide dynamic range, high accuracy, fast measurement and analysis, sensor serialization, convenient use and so on. It is mainly used for measuring and calibrating the average power, peak power and pulse envelope power of microwave signals. It is an important measurement instrument for R&D, production, acceptance and maintenance in radar, electronic countermeasures, communications and other fields.

Key Features

◼︎Wide frequency range 9kHz to 500GHz

◼︎CW power sensor frequency up to 500GHz Max. dynamic range: 90dB

◼︎Peak power sensor frequency up to 67GHz Max. dynamic range: 60dB

◼︎More than 10 kinds of measurement

◼︎Internal calibration technology

◼︎Flexible frequency response offset list settings

◼︎GPIB, LAN, USB, programmable control
