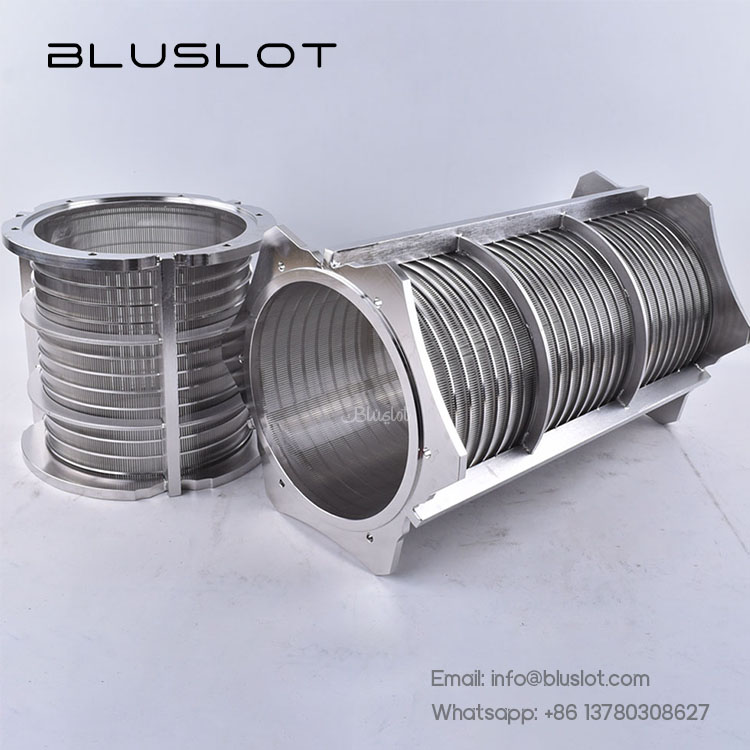

Wedge Wire Self-Cleaning Screen Basket SEPCOM Horizontal

Our screw press screen including, but not limited to:

• CRI-MAN

• DODA

• EYS

• FAN

• PATZ

If your brand is not listed, just contact us!

Our manure separator filter screen inventory include:

• 220 mm (HD)

• 260 mm (Standard & HD)

• 260 mm (for BIG JOHN Separators)

• 390 mm and 520 mm (Standard & HD)

• 600 mm (Standard)

• 780 mm ( Standard & HD)

Wedge wire screw press filter screen is mainly used in the application of dewatering manure in farms. It is a simple, slow moving mechanical device. Dewatering is continuous and is achieved by gravity drainage at the inlet end of the screw and then by volume reduction as the dewatered material is conveyed from the inlet to the outlet end of the screw press.

The working process is as follows:

First, the water-containing material enters the screw press screen through the feed end of the screw press machine. Under the influence of gravity, larger liquid particles in the material are initially discharged through the screen, achieving preliminary dewatering.

Next, the rotating screw rod applies pressure to the material, further squeezing out more liquid. During this pressing process, the moisture in the material continuously diminishes, eventually forming relatively dry solid material.

After being pressed and dewatered, these dewatered solid materials are discharged from the outlet end of the screw press screen. This continuous pressing and discharging process ensures the stable progression of the entire solid-liquid separation process.
