Sell Automatic Flour Packaging Equipment

Overview

The JINGU High-speed open-mouth packaging system is designed for packaging and closing powdered or granular materials in to open-mouth bags.

The system handles up to 750 bags per hour for all paper, PE, PP woven bags (Pillow-type) .

Features

Product Introduction

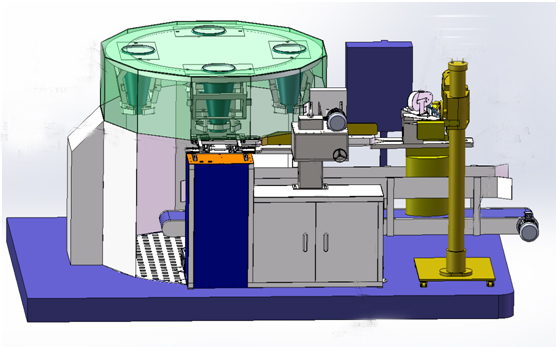

The JGR-25 Series automatic flour packaging line (patent pending) is a highly efficient system that has been designed to easily run porous polywoven bags. As a new, innovative solution for improved flour packaging system, The JGR-25's innovative way to catch bag into an automatic packaging has been merged with the proven robotic full-bag exit system, producing a automatic packaging solution that replaces a manual equipment line.

Structure characteristics

It is equipped with catch bag device, conveying device, labeling device, folding & sewing device.

1. Catch bag device

A. Main function:

Catch flour bag from packing scale

Tidy and stretch bag open mouth

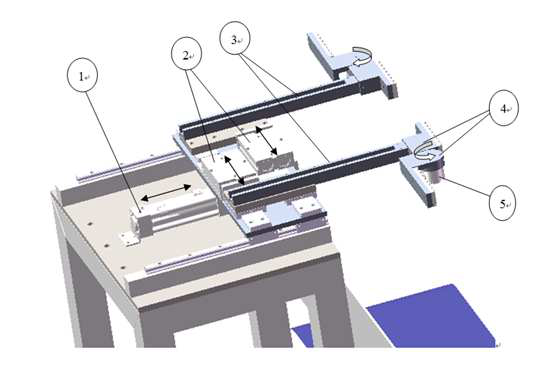

① vertical cylinder ② horizontal cylinder ③ mechanical arm ④ catch device ⑤ rotary cylinder

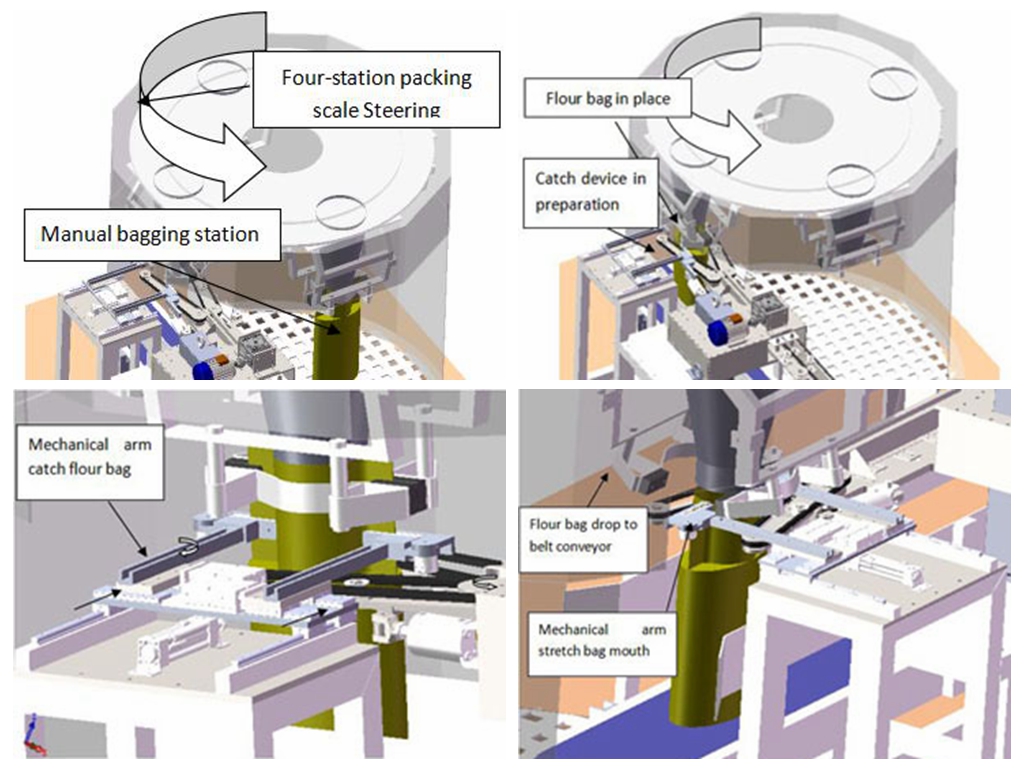

B. Motion diagram

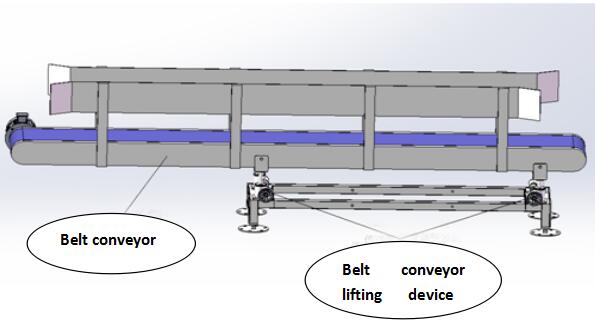

2. Conveying Device

Main function:

Ensure bag mouth flat and straight

Convey flour bag to next process section

Synchronous Conveying

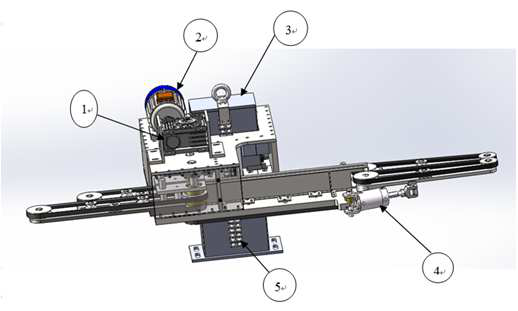

①gearbox ② motor ③ support pillar ④ swing arm cylinder ⑤ lifting chain

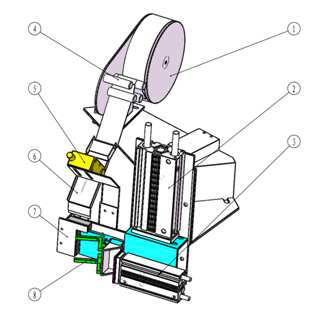

3. labeling Device

label disc vertical cylinder horizontal cylinder label tension rod color code sensor ⑥ label guide slot ⑦ label break board ⑧ label clip device

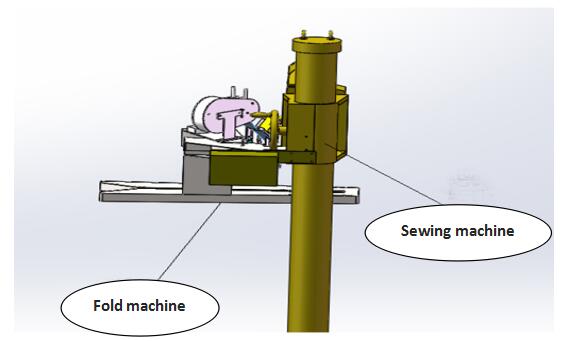

4. folding & sewing device

Characteristic Features

1). Variable frequency drives on core components for smooth operation and long life span

2). Main frame structure is welded structure.

3). Programmable logic control (PLC) system

4). Powered by electric and pneumatic systems

5). Total control of the bags throughout the entire cycle

6). Minimal bag handling time against to high speed operation

7). Control mode convenient and flexible, match with different type products

8). Servo control, position accurately

9). Touch screen stores product types, simplify operation process

10). Control mode function includes automation control, detection, protection, alarm

Service

JINGU technical center can help our client to finish feasibility study, environment impact assessment and safety assessment and also provides turnkey service with high efficiency.

JINGU has its own various processing equipment and takes strict control measures on product quality, which results in fast delivery within a short time. Besides, JINGU can guarantee completion and operation as scheduled with its strong service team for installation and after–sales service.

Specifications

Estimated Output:

Up to 750 bags per hour

Bag Materail:

Paper, Laminated PP Woven

Empty Bag Width:

Up to 500mm

Empty Bag Length:

Up to 900mm

Air Pressure Required:

0.5-0.7MPa

Sewing Speed:

0.2m/s

Required Power Supply:

380V/3phase/50Hz

Location : Jinshui Road, 450000 zhengzhou,
Contact : Zhengang Chang, +86 0371 86503865
