Rail Frog Wear Gauge
Price : 1 050,00 €

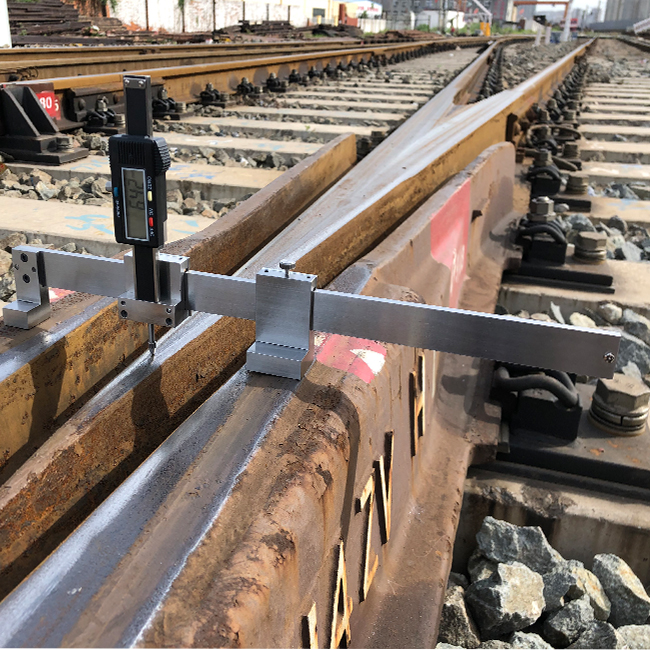

Digital Track Gauge
Digital Track Gauge can directly read the measurement values of railway track gauge, super elevation , check rail gauge and back to back distance through microelectronics, embedded and sensor technologies and OLED display screen.
Features
1. Large LED backlit display: especially suitable for day outside and dark night 2. Quick calibration operation: simple measurement process 3. Large capacity battery: long standby time 4. Accurate measurement: keep long-term stability 5. Temperature compensation : working temperature is -30~+55℃ 6. Insulated design 7. Anti-electromagnetic interference 8. Waterproof: could use in rainy day 9. power saving function: no operation within 15 minutes, the system will automatically shut down. 10. Approval by CHINA ACADEMY OF RAILWAY SCIENCES
Specification
|
Model(1435mm) |
GJC-TJG1 |
|
Track gauge(mm) |
1384-1470 |
|
Gauge rail check gauge(mm) |
1364-1450 |
|
Guard rail face gauge(mm) |
1344-1430 |
|
Superelevation measuring range(mm) |
-200~+200 |
|
Flangeway Clearance(mm) |
20-107 |
|
Superelevation division value(mm) |
0.10 |
|
Track gauge division value(mm) |
0.1 |
|
Track gauge max indication error(mm) |
±0.25 |
|
Superelevation error(mm) |
±0.45 |
|
Application rail line |
railway speed less than 250km/h |
Contact : junyang yan, +18 6 27 99 20 52
