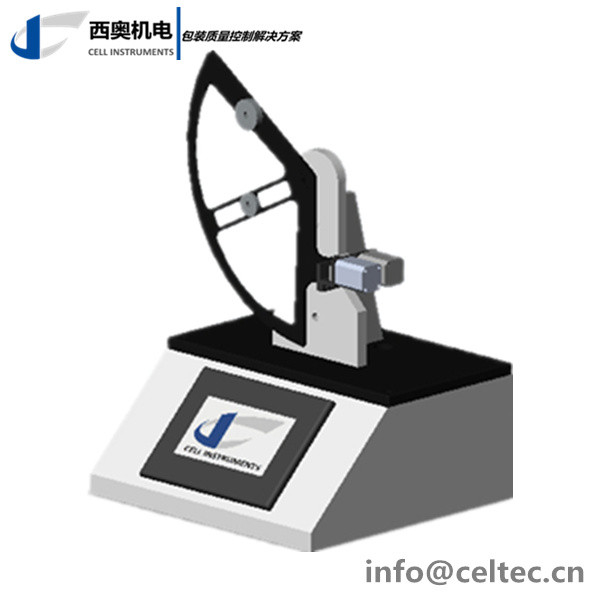

Plastic film tear tester

Plastic film tear tester takes the Elmendorf method and is used to determinate tearing resistance property of films, sheets, flexible PVC, PVDC, waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textile and non-woven, etc.

Plastic film tear tester Standards:

ASTM D1922, ASTM D1424, ASTM D689, ISO 6383, ISO 1974, GB/T16578.2-2009, GB/T 455, TAPPI T414

Features

1. PLC control and touch screen operation

2. Pneumatic specimen clamping and pendulum automatic release

3. Data auto statistics, storage and micro printing

4. RS232 port and software (Optional)

5. Microprinter

Plastic film tear tester technical data

Pendulum Capacity 200 gf, 400 gf, 800 gf, 1600 gf, 3200 gf, 6400 gf

Gas Source 0.6 MPa

Tearing Arm 104±1mm

Tearing Initial Angle 27.5 ±0.5°

Power AC 220V 50Hz (Customization available)

Location : xiying,licheng district,Jinan,Shandong,China, 250000 Jinan,
Contact : Owen Zhang, 86 531 88977152
