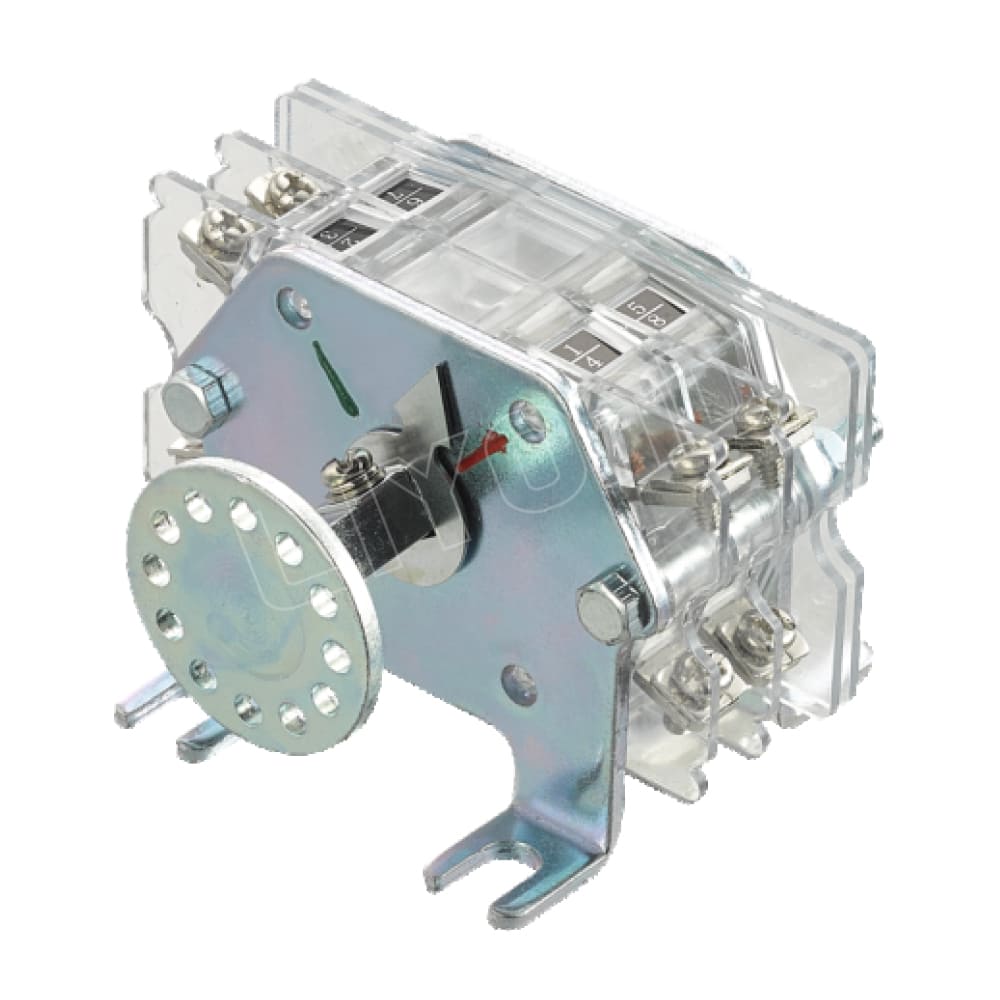

F6 Auxiliary Switch For Circuit Breaker | Liyond

Liyond's F6 Auxiliary Switch, a prime example of what is auxiliary switch, is primarily used for control of opening, closing, interlocking, and signals in operating mechanisms of various high-voltage circuit breakers and high-voltage isolating switches. The auxiliary circuit switch can also function as a transfer or combined switch in HV switchgear. This multi-section switch ensures reliable signal transmission and control within complex power systems.

Innovative Mechanism and Flexible Design

The F6 auxiliary switch features a unique mechanism where contact pressure is generated by an independently set compression spring for reliable current performance. Its fast-acting mechanism allows flexible operation, accurate delay, and quick switching. Structural forms include fast-acting ("I") and direct drive (with/without delay contacts). Installation types are display (W) or vertical (L).

Robust Performance in Diverse Environments

Designed for demanding environments, the F6 auxiliary switch operates effectively up to 3000m altitude and from -25°C to +40°C ambient temperatures. It tolerates specified humidity; installation requires no frequent vibration. The medium must be free of explosive, conductive, or corrosive elements. With 20,000 operation life cycles, it ensures long-term reliability.

How to Order Liyond F6 Auxiliary Switch

To ensure an accurate quotation and timely delivery, please provide the following essential specifications:

• Product Name, Model, and Quantity.
• Contact Configuration: Specify contact number, switch section number, type, and installation method.
• Connecting Accessories: Indicate whether needed.
• Special Requirements: Note any other special requirements.
