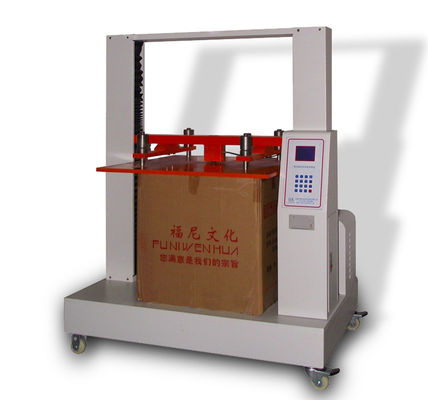

Box crushing force tester

Box crushing force tester is for the compression strength, crushing force and stacking ability of medium and small size packaging like corrugated carton.

Box crushing force tester Technical Feature

1. LCD display, PVC operation manual, human design

2. Microcomputer processing system, automatic measurement, test result intelligent judging, self-return

3. Microcomputer data collecting and computing, microprinter

4. Real-time display of compression resistance force, deformation and changing curve

5. Three test modes of compression resistance, stacking and compression at fixed time and pressure

6. Synchronous motor

7. Accurate thread lead screw drive system

Box crushing force tester Technical Data

Pressure range: 0-10KN

Force resolution: 0.1N, Display error: ±2%

Display variation: ≤2%, Back to zero error: ±0.2%FS

Deformation measurement accuracy: ±1mm

Compressing speed adjustable range: 5mm/min~90mm/min

Compressing speed relative error: ±3%(within 5~90mm/min)

Standard compressing speed: 12mm/min

Stacking test speed: 5mm/min

Lower platen stroke: 800mm

Test space: 400mm(L)*600mm(W)*600mm(H)

Upper and lower platen parallelism degree: ≤1mm

Dimension: 850mm(L)*600mm(W)*1100mm(H)

Weight: 200kg

Standards

ISO12048, TAPPI T804
