RuiJie TJ30100 Mobile Gold Mining Equipment: Efficient Gold Recovery

1. What Is the TJ30100 Mobile Gold Mining Equipment?

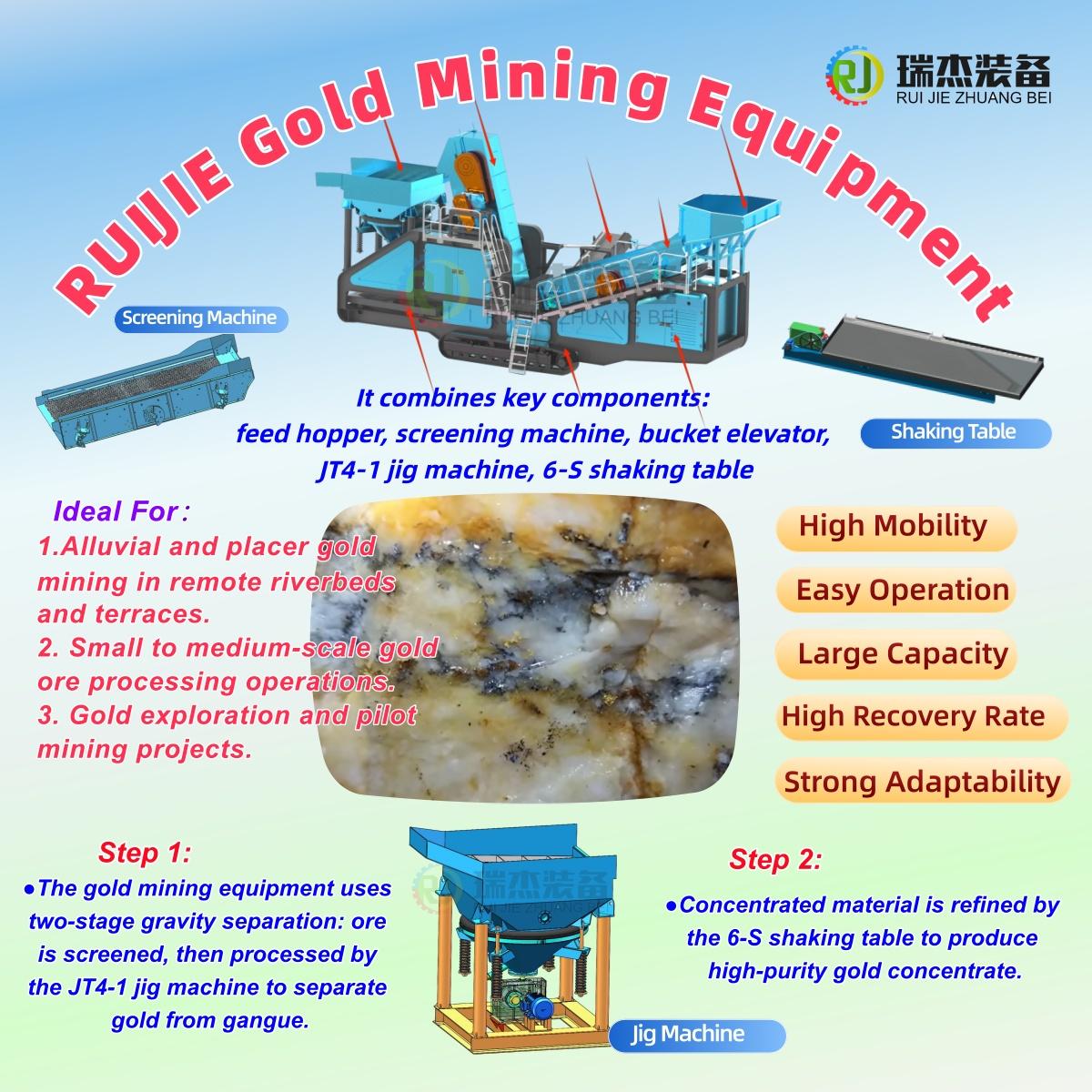

The TJ30100 mobile gold Mining Equipment is a fully integrated, crawler-mounted gold mining system designed for on-site gold ore processing. It combines key components: feed hopper, screening machine, bucket elevator, JT4-1 jig machine, 6-S shaking table, and power cabin. This all-in-one design is widely used in gold mining, placer gold recovery, and alluvial gold processing operations.

2. Working Principle

The plant uses a two-stage gravity separation process to maximize gold recovery:

Feeding & Screening: Crushed gold ore is fed into the hopper, then screened and classified by the screening machine to remove debris.

Jigging Separation: The JT4-1 jig machine uses vertical pulsating water flow to separate heavy gold particles from lighter gangue. Coarse gold settles on the screen, fine gold passes to the concentrate outlet, and tailings are discharged.

Shaking Table Refinement: Concentrated fine gold ore is lifted to the 6-S shaking table. The inclined reciprocating motion, combined with water flow, stratifies materials by density, separating high-purity gold concentrate for final recovery.

3. Key Applications

This mobile plant is ideal for:

Alluvial and placer gold mining in remote riverbeds and terraces

Small to medium-scale gold ore processing operations

Gold exploration and pilot mining projects

Mining sites with limited infrastructure or power supply

4. Core Advantages

High Mobility: The crawler track design adapts to rough terrain, enabling quick relocation between mining sites.

Easy Operation: Requires minimal personnel, significantly reducing labor costs.

Large Capacity: Handles high volumes of ore to boost production efficiency.

High Recovery Rate: The combination of jigging and shaking table achieves high gold recovery rates, maximizing resource yield.

Strong Adaptability: Works reliably across diverse geological conditions and mining environments.

Low Maintenance Cost: Modular, durable components simplify routine upkeep, lowering long-term operational expenses.

Conclusion

The Rui Jie TJ30100 mobile gold Mining Equipment combines mobility, large capacity, and proven gravity separation technology to deliver efficient, cost-effective gold recovery. With low labor requirements, strong adaptability, and easy maintenance, it is a practical solution for maximizing productivity in modern gold mining.
